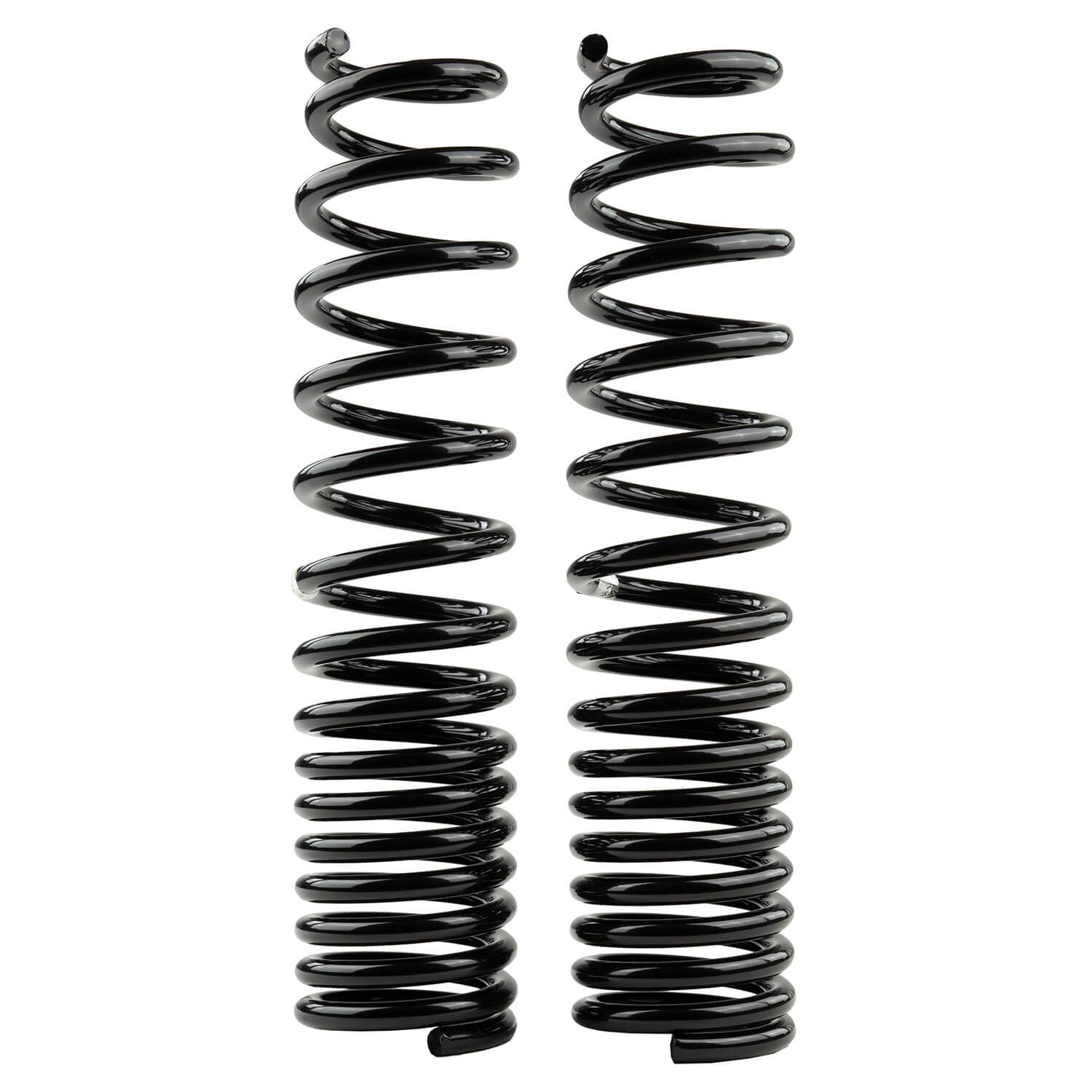

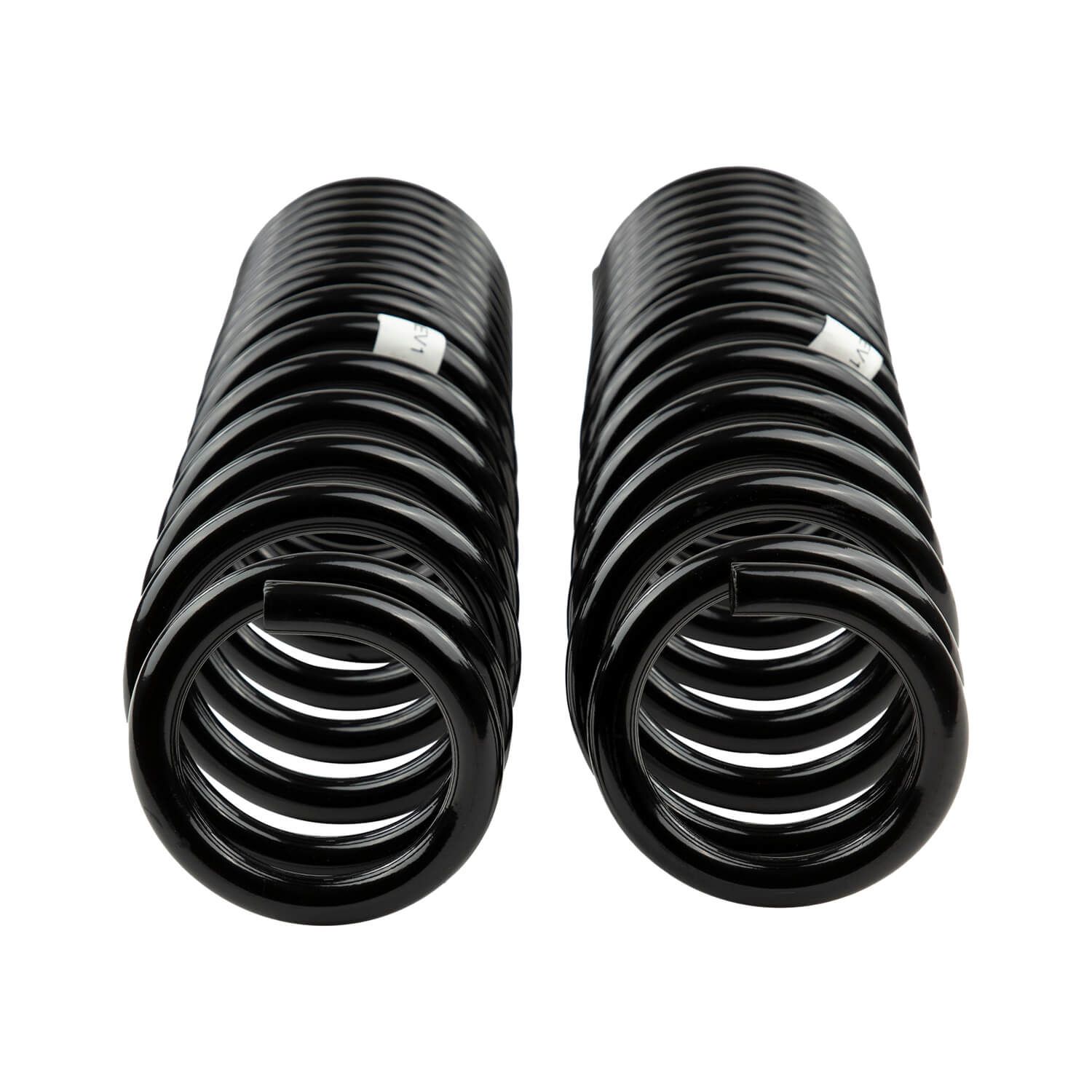

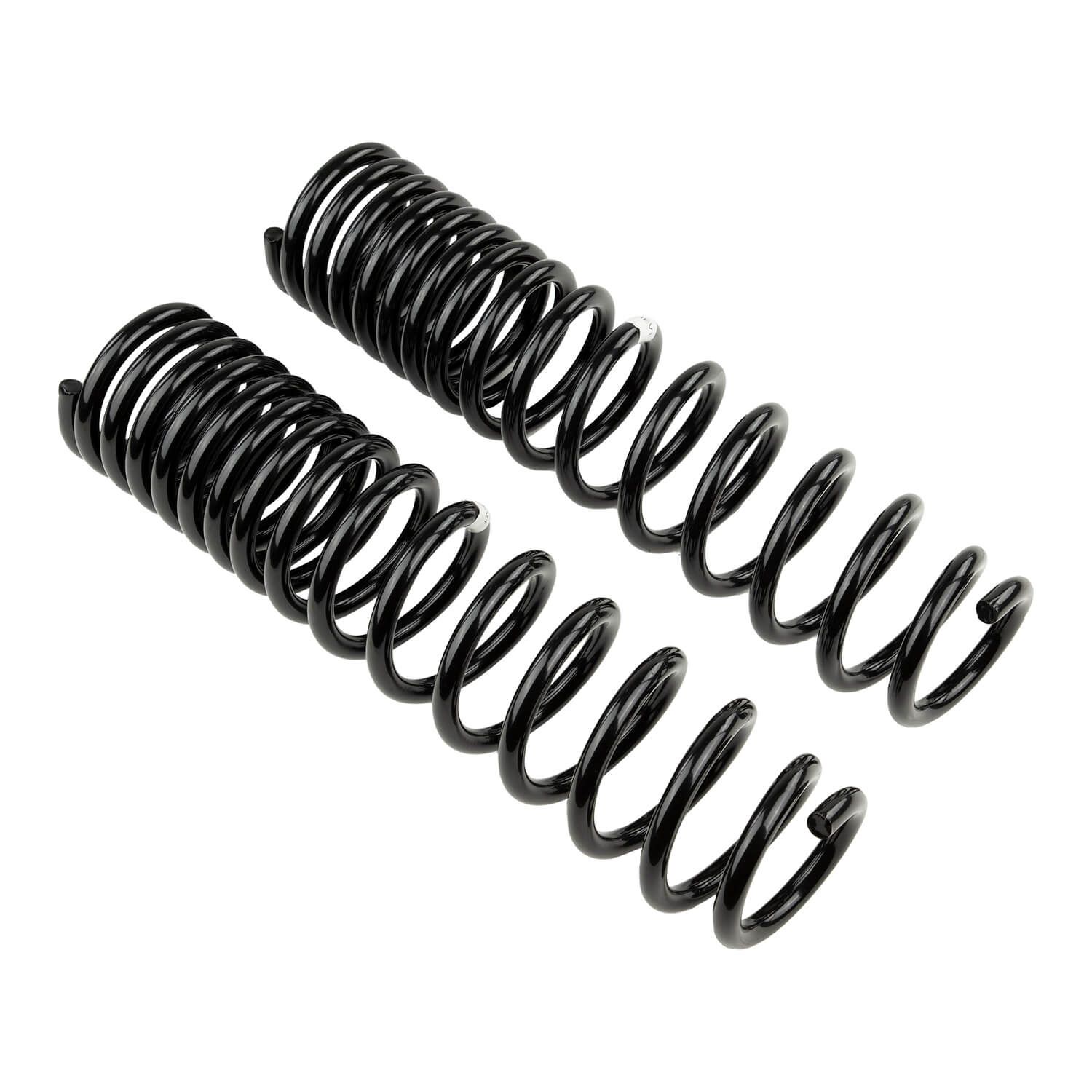

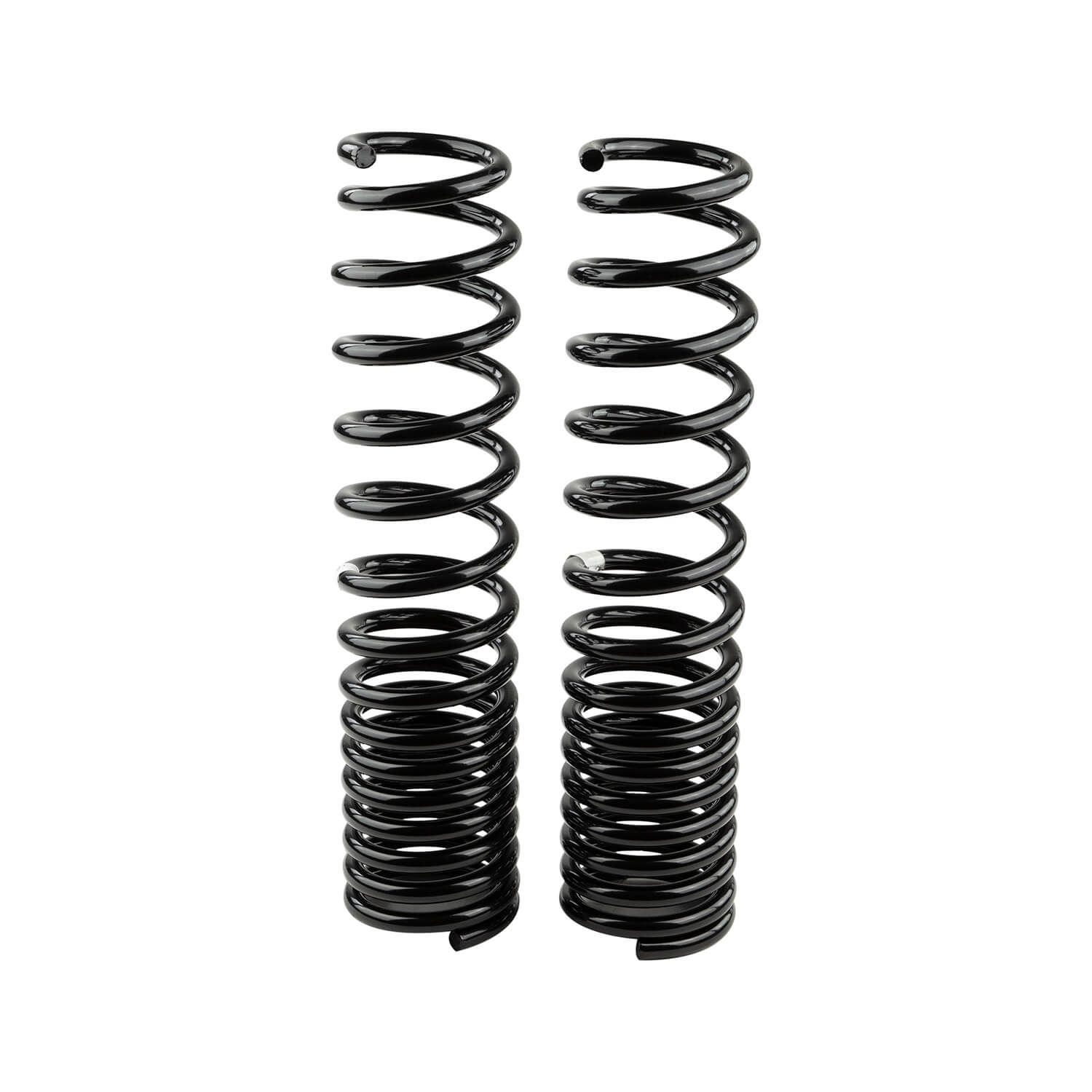

Old Man Emu – 3204 – Rear Coil Spring Set

Description

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state of the art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage. While ride height increases are attained, a greater emphasis is placed on ride control improvements. Further fine tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

Additional Attributes:

GTIN: 09319092034956
Add-On: N/A
Bar Diameter: 14.25mm
Coil Weight: 6.5kg
Color: Black
Free Height: A: 525mm; B: 525mm
Material: Micro-alloyed Steel
Number of Turns: 16.0
OE Spring Rate: N/A lb
Prop 65 Yes/No: No
Spring Rate: Lbf/in: 239/287; N/mm: 42/50

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: PR
Dimension: 25.2 x 14.5 x 7.4 inches
Weight: 28.7 PG
